Matrice 100

R65,995 Incl. VAT

Availability: Out of Stock

SKU: Matrice100.

Product Description

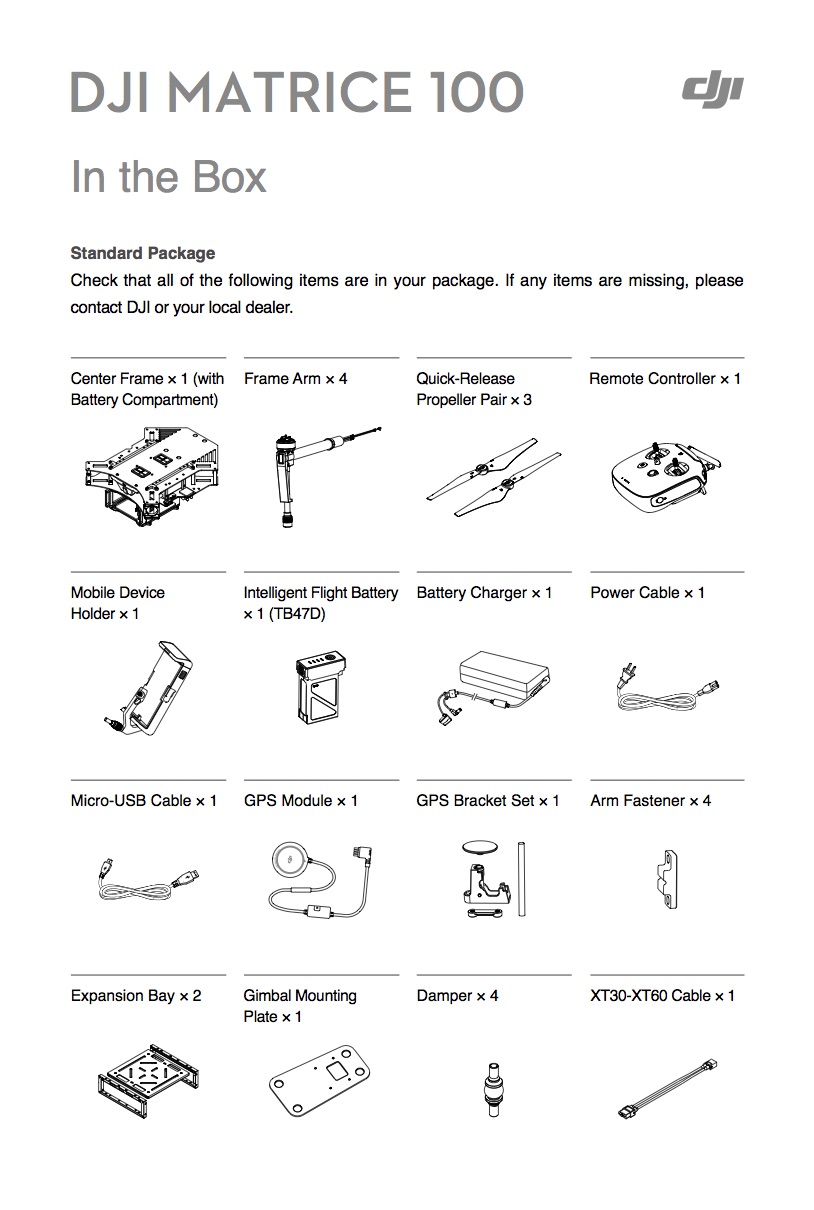

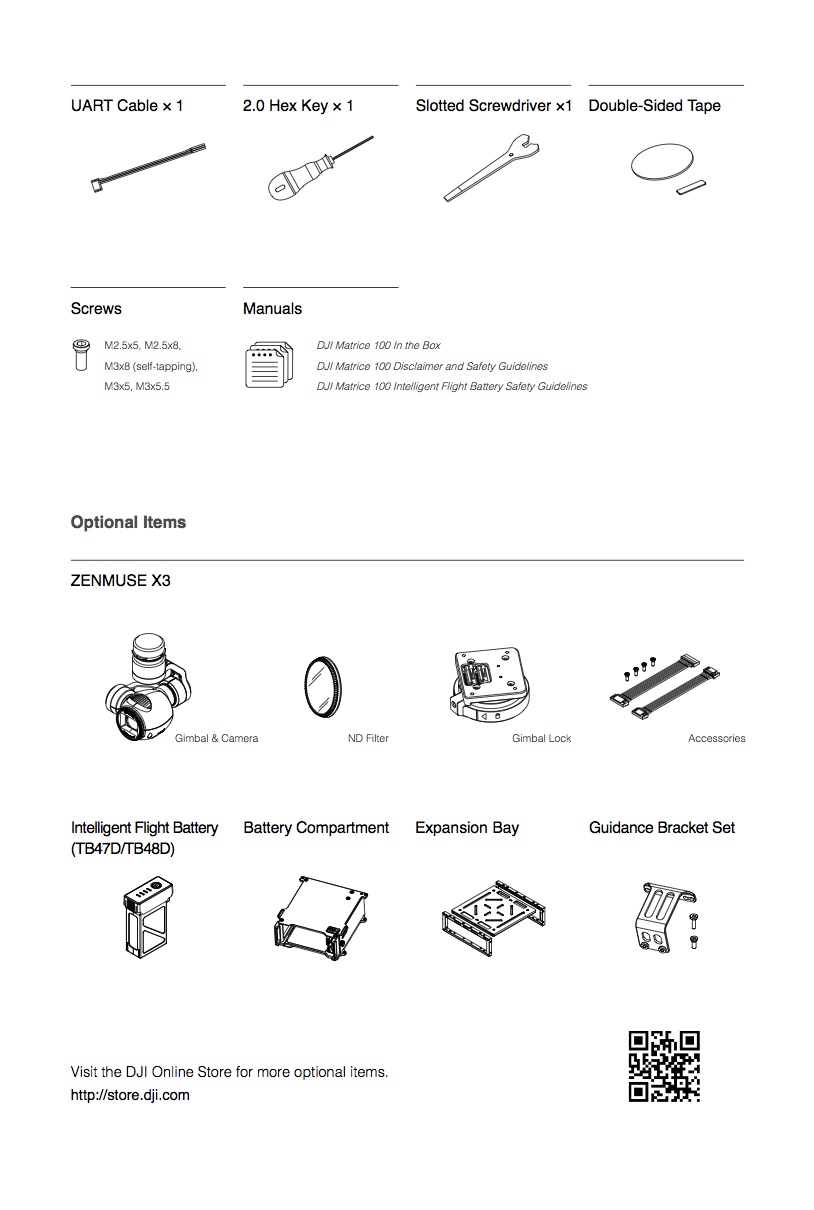

Package Includes :

  • Matrice 100
  • M100 Remote
  • 1 x Battery
  • 1 x Charger
  • Expansion Bays
  • 8 Propellers
  • Tools

Expansion Bays

Additional expansion bays allow you to add components, customize the payload, and fly with any devices you want. Put cameras, sensors, computing boards, communication tools, and more into the sky, and gather data while completing complex jobs from a birds-eye view.

Universal Power
and Communication Ports

Connect and fly with a range of DJI or third party devices, and transmit data to the ground in real time. The Matrice 100 has dual parallel CAN ports for connecting DJI devices including the Guidance sensor system and dual parallel UART ports for connecting third party components of your choice. Now it is easy to mount your own equipment and put it into the sky.

Dual Battery
Compartments

Add an additional battery compartment to achieve up to 40 minutes* of flight time. This gives greater power to both your platform and any additional devices or accessories that you wish to fly with.

*Flight times vary based on payload and flight conditions, and the maximum 40 minute flight time tested when hovering with dual TB48D batteries and no additional payload.

Customizable Mounting
and Balancing

Achieve perfect balance and an ideal flight experience by sliding the battery and other compartments around the body of your Matrice 100. Put your components exactly where you want them, and get the most out of your system.

Adjustable Arm Angle for Greater Torque

Flexible to match your flight needs, adjusting the arm angle of each of the 4 arms is quick and easy. Achieve increased yaw torque and greater response by tilting the arms to a 3 degree angle.

50% Less Vibrations,
Rigid,Strong System

To reduce vibrations, increase stiffness, and bring unmatched reliability, your Matrice 100 is made of strong, lightweight carbon fiber. Each of the arms contains DJI’s new soft vibration absorbing material that virtually eliminates feedback from the powerful motors, keeping your critical components stable and allowing unprecedented accuracy.

Responsive,
Quick Release Landing Pads

Innovative landing pads or “feet” are installed at the base of each arm to protect your Matrice 100 when landing. These pads greatly reduce impact, protecting your system and eliminating the chance of your platform unintentionally lifting off of the ground. Also easy and quick to remove for replacement or upgrades.

Dedicated Remote Controller

Take control of your platform with the customizable, long-range remote controller included with the Matrice 100. With an operating distance of up to 1.2 miles* (2km), a rechargeable battery, fully adjustable controls, and outputs to connect to your mobile device, this is the perfect tool to command your system in the air.

*Maximum range tested in open areas free of interference and may vary depending on local regulations.

Enhanced GPS

Enhanced GPS with a foldable mount helps you to track your Matrice 100’s position in real time, while enabling faster satellite acquisition, more accurate position holding and flight planning.

Upgraded Flight Controller
and Integrated Lightbridge

DJI’s new N1 flight controller keeps your Matrice 100 stable and responsive to your commands throughout every flight. Transmitting data to you and bringing a live HD view (when using DJI’s X3 Camera and gimbal), the included DJI Lightbridge increases your flight range to 1.2 miles* (2km).

*Maximum range tested in open areas free of interference and may vary depending on local regulations.

Purpose-Built Propulsion System

An upgraded version of the respected DJI E800 electric propulsion system powers your Matrice 100 and keeps it in flight. Four powerful, brushless motors and four lightning fast Electronic Speed Controllers are integrated into the platform, giving you complete control during flight. With increased strength and payload capacity, you have the flexibility to create the system you need.

Compatible Parts for Further Functionality

The Matrice 100 is compatible with a wide range of DJI accessories including:

  • Guidance
  • X3 Camera and Gimbal
  • Extra Battery
  • N1 Video Encoder
Guidance
DJI’s revolutionary sensor kit that helps your platform see its environment and recognize when obstacles or other objects are nearby.

Features

EXPANSION BAYS
Additional expansion bays allow you to add components, customize the payload, and fly with any devices you want. Put cameras, sensors, computing boards, communication tools, and more into the sky, and gather data while completing complex jobs from a birds-eye view.

UNIVERSAL POWER AND COMMUNICATION PORTS
aConnect and fly with a range of DJI or third party devices, and transmit data to the ground in real time. The Matrice 100 has dual parallel CAN ports for connecting DJI devices including the Guidance sensor system and dual parallel UART ports for connecting third party components of your choice. Now it is easy to mount your own equipment and put it into the sky.

DUAL BATTERY COMPARTMENTS
Add an additional battery compartment to achieve up to 40 minutes* of flight time. This gives greater power to both your platform and any additional devices or accessories that you wish to fly with.
*Flight times vary based on payload and flight conditions, and the maximum 40 minute flight time tested when hovering with dual TB48D batteries and no additional payload.

CUSTOMIZABLE MOUNTING AND BALANCING
Achieve perfect balance and an ideal flight experience by sliding the battery and other compartments around the body of your Matrice 100. Put your components exactly where you want them, and get the most out of your system.

ADJUSTABLE ARM ANGLE FOR GREATER TORQUE
Flexible to match your flight needs, adjusting the arm angle of each of the 4 arms is quick and easy. Achieve increased yaw torque and greater response by tilting the arms to a 3 degree angle.

50% LESS VIBRATIONS, RIGID,STRONG SYSTEM
To reduce vibrations, increase stiffness, and bring unmatched reliability, your Matrice 100 is made of strong, lightweight carbon fiber. Each of the arms contains DJI’s new soft vibration absorbing material that virtually eliminates feedback from the powerful motors, keeping your critical components stable and allowing unprecedented accuracy.

RESPONSIVE, QUICK RELEASE LANDING PADS
Innovative landing pads or “feet” are installed at the base of each arm to protect your Matrice 100 when landing. These pads greatly reduce impact, protecting your system and eliminating the chance of your platform unintentionally lifting off of the ground. Also easy and quick to remove for replacement or upgrades.

DEDICATED REMOTE CONTROLLER
Take control of your platform with the customizable, long-range remote controller included with the Matrice 100. With an operating distance of up to 3.1 miles* (5km), a rechargeable battery, fully adjustable controls, and outputs to connect to your mobile device, this is the perfect tool to command your system in the air.
*Maximum range tested in open areas free of interference and may vary depending on local regulations.

FULL MOBILE APP SUPPORT
Fly with the feature-rich DJI GO app or create your own app with the DJI SDK. See a live view, control your devices, access a real-time map, and more by simply plugging in your tablet or smartphone.

ENHANCED GPS
Enhanced GPS with a foldable mount helps you to track your Matrice 100’s position in real time, while enabling faster satellite acquisition, more accurate position holding and flight planning.

UPGRADED FLIGHT CONTROLLER AND INTEGRATED LIGHTBRIDGE
DJI’s new N1 flight controller keeps your Matrice 100 stable and responsive to your commands throughout every flight. Transmitting data to you and bringing a live HD view (when using DJI’s X3 Camera and gimbal), the included DJI Lightbridge increases your flight range to 3.1miles* (5km).
*Maximum range tested in open areas free of interference and may vary depending on local regulations.

PURPOSE-BUILT PROPULSION SYSTEM
An upgraded version of the respected DJI E800 electric propulsion system powers your Matrice 100 and keeps it in flight. Four powerful, brushless motors and four lightning fast Electronic Speed Controllers are integrated into the platform, giving you complete control during flight. With increased strength and payload capacity, you have the flexibility to create the system you need.



STRUCTURE

Diagonal Wheelbase 650 mm
Weight (with TB47D battery) 2355 g
Weight (with TB48D battery) 2431 g
Max. Takeoff Weight 3400 g
Expansion Bay Weight 45 g
Battery Compartment Weight 160 g
Zenmuse X3 Gimbal with Camera Weight 247 g

PROPULSION SYSTEM

Motor Model DJI 3510
Propeller Model DJI 1345s
ESC Model DJI E SERIES 620D

OTHER

Operating Temperature -10°C to 40°C

CHARGER

Model A14-100P1A
Voltage Output 26.3 V
Power Rating 100 W

BATTERY (OPTIONAL)

Name Intelligent Flight Battery
Model TB48D
Capacity 5700 mAh
Voltage 22.8 V
Type LiPo 6S
Energy 129.96 Wh
Net Weight 676 g
Operating Temperature -10°C to 40°C
Storage Temperature
  • <3 months: -20° to 45°C
  • >3 months: 22° to 28°C
Charging Temperature 0°C to 40°C
Max. Charging Power 180 W

PERFORMANCE

Hovering Accuracy (P-Mode With GPS) Vertical: 0.5 m, Horizontal: 2.5 m
Max. Angular Velocity Pitch: 300°/s, Yaw: 150°/s
Max. Tilt Angle 35°
Max. Speed of Ascent 5 m/s
Max. Speed of Descent 4 m/s
Max. Wind Resistance 10 m/s
Max. Speed
  • 22 m/s (ATTI mode, no payload, no wind)
  • 17 m/s (GPS mode, no payload, no wind)
Hovering Time (with TB47D battery) No payload: 22 min; 500g payload: 17 min;1kg payload: 13 min
Hovering Time (with TB48D battery) No payload: 28 min; 500g payload: 20 min;1kg payload: 16 min
Hovering Time (with two TB47D batteries) No payload: 33 min
Hovering Time (with two TB48D battery) No payload: 40 min
Hovering Time (with TB47D battery and Zenmuse X3) No payload: 19 min
Hovering Time (with TB48D battery and Zenmuse X3) No payload: 23 min

FLIGHT CONTROL SYSTEM

Model N1

REMOTE CONTROLLER

Name C1
Operating Frequency
  • 5.725~5.825 GHz
  • 922.7MHz~927.7 MHz (Japan)
  • 2.400~2.483 GHz (Lightbridge)
Transmission Distance (unobstructed, free of interference)
  • CE: 3.5 km
  • FCC: 5 km
EIRP
  • 10dBm@900M
  • 13dBm@5.8G
  • 20dBm@2.4G
Video Output USB, Mini-HDMI
Power Supply Built-in battery
Charger DJI approved charger
Dual Users Capability Master-and-Slave control
Mobile Device Holder Supports smartphones and tablets
Output Power 9 W
Operating Temperature -10°C to 40°C
Storage Temperature
  • <3 months: -20°C to 45°C
  • >3 months: 22°C to 28°C
Charging Temperature 0°C to 40°C
Battery 6000 mAh LiPo 2S
Max Mobile Device Width 170mm

BATTERY (STANDARD)

Name Intelligent Flight Battery
Model TB47D
Capacity 4500 mAh
Voltage 22.2 V
Type LiPo 6S
Energy 99.9 Wh
Net Weight 600 g
Operating Temperature -10°C to 40°C
Storage Temperature
  • <3 months: -20°C to 45°C
  • >3 months: 22°C to 28°C
Charging Temperature 0°C to 40°C
Max. Charging Power 180 W

gimbal-3-pro-tau2 FLIR Tau2 Gimbal
